AEE-2085 Crosspoint Switch

Crosspoint switch. It’s designed as an attachment to a computer (PC). The switch can be controlled programmatically by computer via USB interface or remotely via 10/100BASE-T (LAN) network interface. Weight: 0.21kg / 7.41oz. Dimensions: 150x85x35mm / 5.9x3.3x1.4in

The Aktakom AEE-2085 crossbar switch is an assembly of individual switches between 4 pair of inputs and 4 pair of outputs, pluggable PCB terminal block has screw-locking feature. The switches are arranged in a matrix with 4 x 4 cross-points or places where the "bars of two contacts" cross. At each crosspoint is a switch; when closed, it connects one of 4 inputs to one of 4 outputs or more. A given crossbar is a doble layer, non-blocking switch. Collections of crossbars can be used to implement multiple layer and/or blocking switches. This crossbar is also may called to co-ordinate switching system.

The switch can be controlled and programmed remotely via USB or LAN interfaces by using an AKTAKOM proprietary application software. The device comes with an AKTAKOM propietary web application which allows remote control via WAN.

Specifications

Number of input ports: 1…7 (user-selectable)
Number of output ports: 1…7 (user-selectable)
Type and the maximum voltage of the switched circuit: DC, AC (peak-to-peak) – 10mV…100V
Maximum current of the switched circuit: 3.0A
Maximum frequency of the switched signal: 100kHz
Interface: USB 1.1 (12Mbit/s), Ethernet 10/100BASE-T
Power supply: 5.5V / 220V with a network adapter
Weight: 0.21kg / 7.41oz
Dimensions: 150x85x35mm / 5.9x3.3x1.4in

Accessories

DC 5v adapter
Software
User's Manual

Optional accessories

AHA-1288 Mobile Stand

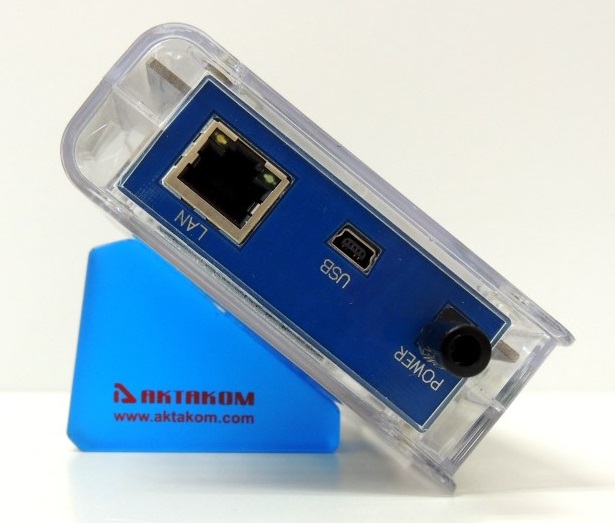

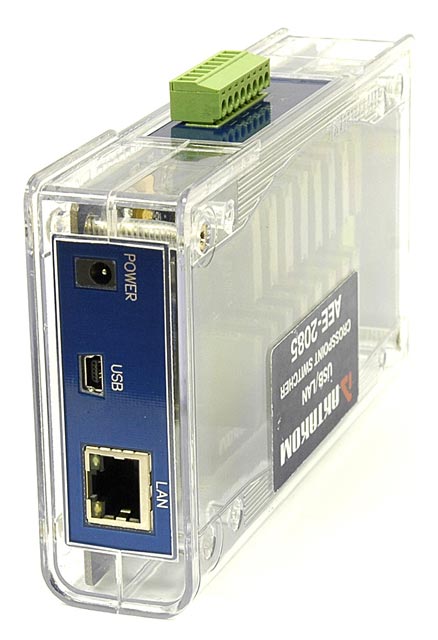

AEE-2085 Crosspoint Switch

Enlarge

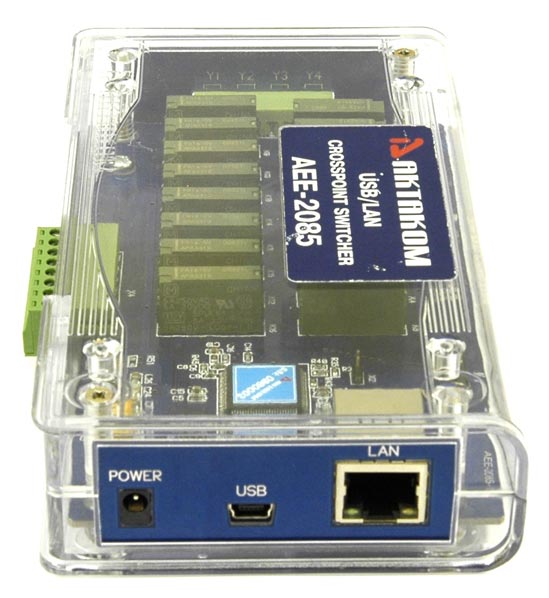

AEE-2085 Crosspoint Switch

Enlarge

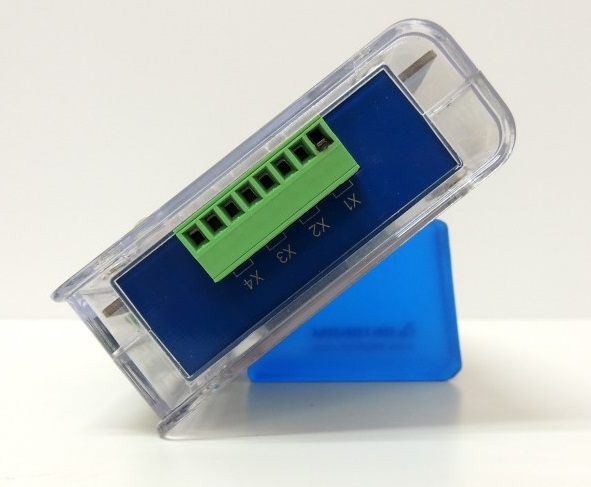

AEE-2085 Crosspoint Switch

Enlarge

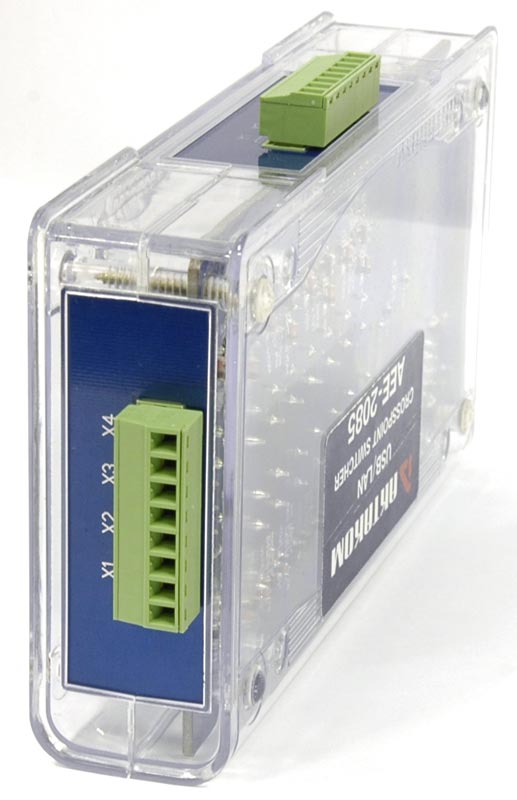

AEE-2085 Crosspoint Switch

Enlarge

Frequently Asked Questions

Can I commutate several inputs to one output simultaneously when working with AEE-2025 and AEE-2085?

Can I commutate several inputs to one output simultaneously when working with AEE-2025 and AEE-2085?
Yes, you can. AEE-2025 (and AEE-2085) allows you to commutate any number of input lines to any number of output lines. At the same time you may at will specify any constraints in the program for commutation variants. It’s convenient to use such software constraints if you need to commutate independent signals with the help of one commutator. Up

Compatible Software

AEE-20XX_SDK Software Development Kit

Full Software Development Kit (SDK) is designed for creating user applications for four and single channel AKTAKOM AEE-208x and AEE-208x Crosspoint Switches. It’s capable of operating in Windows and LabView environments with USB and LAN interfaces.

AEE-20XX_SDK_Base Software Development Kit

The Base Software Development Kit (SDK) is designed for creating user applications for four and single channel AKTAKOM AEE-208x and AEE-208x Crosspoint Switches. It’s capable of operating in Windows and LabView environments with USB and LAN interfaces.

AKTAKOM Net Configurator (ANC)

AKTAKOM Net Configurator is designed to record and read the network settings data of AKTAKOM Universal Lab devices (supporting AULNet protocol). The application provides simple and convenient user interface to work with settings, they can be recorded into the file and read afterwards.

Aktakom Switch Box (ASB)
