ATE-2566 Infrared Thermometer

Infrared Thermometer. Meas. ranges: -35.0°C to 800°C / -31.0°F to 1472°F; Dual laser sighting; selectable ºC or ºF; Response time: 300ms; Polarity: automatic, minus (-) sign for negative polarity; Emissivity: from 0.1 to 1.0; Field of view: approx. 10:1; Automatic Data Hold; MAX/MIN temperature displays; Auto power off; Signal for the temperature exceeding the limits Backlight LCD display. Power supply: 9V battery. Size: 82x41.5x160mm / 3.2x1.6x6.3in. Weight: 177g/0.38lb

Manuals:
User's Manual (196.2 Kb)

AKTAKOM ATE-2566 Infrared thermometer is designed for precise measuring of surface temperature by pyrometric method. To ensure the measurement precision the device is equipped with a two-point laser, can store the maximum and minimum values in its memory as well as signal for the threshold exceeding.

Features

  • Rapid detection function
  • Precise non-contact measurements
  • User selectable ºC or ºF
  • Dual laser sighting
  • Automatic Data Hold
  • Trigger lock
  • Emissivity Digitally adjustable from 0.10 to 1.0
  • MAX/MIN temperature displays
  • Automatic selection range and Display Resolution 0.1ºC (0.1ºF)
  • Automatic Data Hold & Auto power off
  • Set high and low alarms
  • The meter at 10 inches away measure 1 inch target
  • Backlight LCD display

Specifications

  • Meas. ranges: -35.0°C to 800°C / -31.0°F to 1472°F
  • Response time: 300ms
  • Over range indication: LCD will show “----”
  • Polarity: Automatic (no indication for positive polarity); Minus (-) sign for negative polarity
  • Emissivity: Digitally adjustable from 0.10 to 1.0

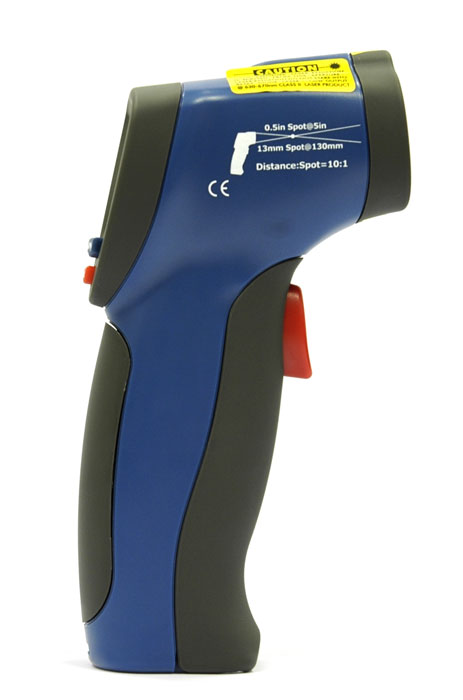

  • Field of view: D/S = Approx. 10:1 ratio (D = distance, S = spot) (Has 90% encircled energy at the focal point)
  • Diode laser: Output <1mW, Wavelength 630…670nm, class 2 (II) Laser product
  • Spectral responcse: 8…14μm
  • Power off: Automatic shut off after 7 seconds, approx.
  • Operating temp.: 0°C to 50°C / 32°F to 122°F
  • Storage temp.: -10°C to 60°C / 32°F to 122°F
  • Relativy humidity: 0%…90%RH operating, <80%RH storage

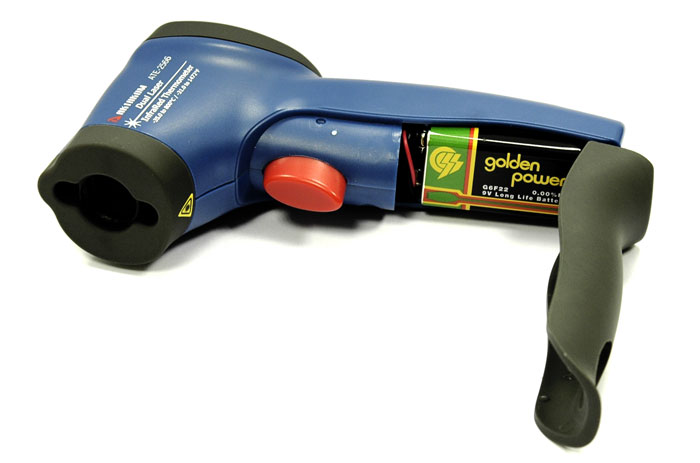

  • Power sypply: 9V battery, NEDA 1604A or IEC 6LR61, or equivalent
  • Size: 82x41.5x160mm / 3.2x1.6x6.3in
Range Basic Accuracy
-35.0°C to 20°C (-58°F to 68°F)
20°C to 300°C (68°F to 572°F)
300°F to 800°C (572°F to 1472°F)
±2.5°C (4.5°F)
±(1.0%+1 of reading)
±(1.5%+1 of reading)
Resolution 0.1°C/°F <1000
1°F >1000

Accessories

  • 9V battery

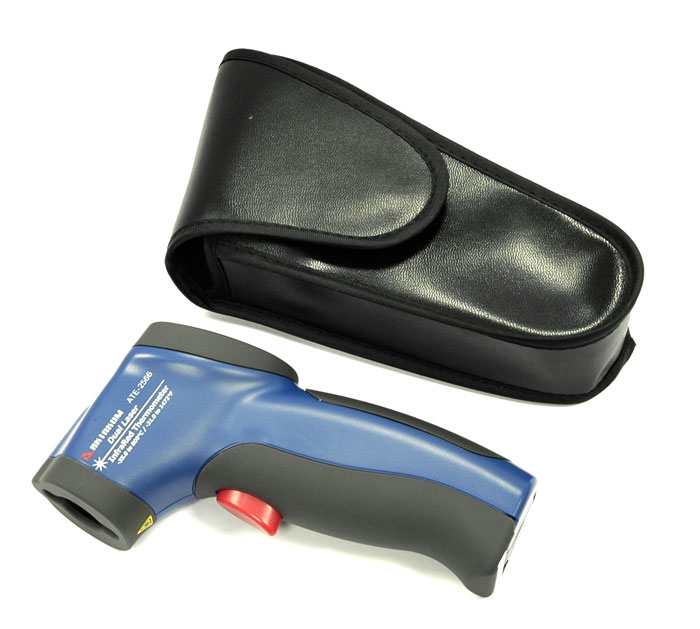

  • Case
  • User's Manual
